R32
difluoromethane refrigerant gas
-25°C
heating operation
60°C
water temperature
4,53
maximum SCOP
with flow 35°C (22 kW)
4,70
maximum SEER
with flow 7°C (22 kW)
WiFi
integrated as standard
ModBus
on all sizes
Wide operation in every mode 22-30 kW
Maximum values of water flow temperature in relation to the external temperature.
HEATING MODE
Operation from -25°C to 35°C.
Delivery temp. from 25°C to 60°C.
COOLING MODE
Operation from -5°C to 46°C.
Delivery temp. from 5°C to 25°C.
DHW PRODUCTION
Operation from -25°C to 43°C.
Delivery temp. for DHW from 30°C to 60°C.
Control
All units are R32 and are equipped with wired remote control and integrated Wi-Fi module.

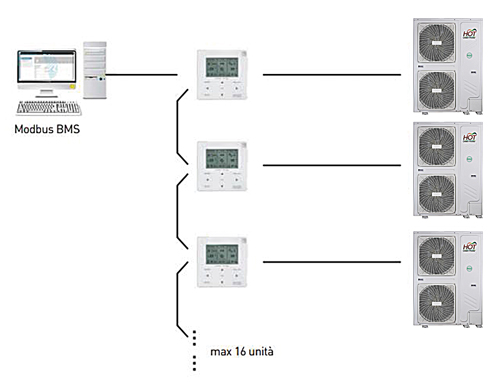

Modbus control
- Up to 16 controllers managed on the same line.
- Maximum line length 150 m.
- Allows construction of large centralized/decentralized systems depending on needs.
Control
All units are R32 and are equipped with wired remote control and integrated Wi-Fi module.
Modbus control
- Up to 16 controllers managed on the same line.
- Maximum line length 150 m.
- Allows construction of large centralized/decentralized systems depending on needs.
Control
All units are R32 and are equipped with wired remote control and integrated Wi-Fi module.
Modbus control
- Up to 16 controllers managed on the same line.
- Maximum line length 150 m.
- Allows construction of large centralized/decentralized systems depending on needs.
